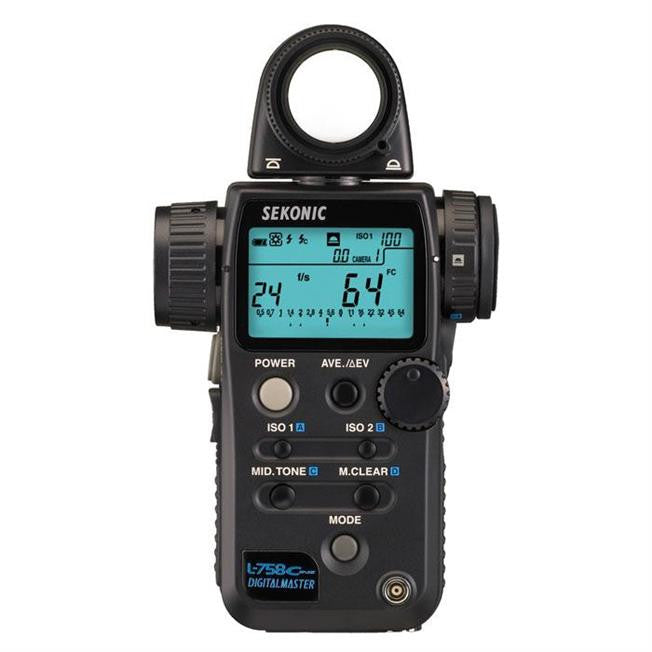

Sekonic L-758Cine DigitalMaster Light Meter
L-758Cine DigitalMaster
The Sekonic L-758Cine DigitalMaster is the ultimate light-measuring tool for cinematographers, videographers as well as digital still shooters. Offering the most extensive range of fps (frames-per-second), cine shutter speeds, and shutter angle settings, it meets and excedes the demands of Professional Cinematographers as well as Professional Still Photographers.
| Detailed Specification of Sekonic L-758Cine DigitalMaster Light Meter | ||
| L-758Cine DigitalMaster - Technical Specifications | ||
| Type: | Digital exposure meter for ambient and flash light | |
| Receptor Head: | Rotating Domed Head 90° to the right, 180° to the left, Retractable for Contrast Reading | |
| Light Receiving Method: | Incident light and reflected light | |
| Receptor Incident Light: | Convertible to flat diffuser (Lumisphere in down position) | |
| Receptor Reflected Light: | 1° spot with display in finder | |
| Light Receptor Element: | 2-Silicon photo diodes (incident and reflected) | |
| Reflected Metering Distance: | 3.3' to infinity/1.0m to infinity | |
| Measuring Range and Modes | ||
| Measuring Modes Ambient Light: | - Simple brightness measurement (foot-lambert, cd/m2 | |
| - Simple illumination measurement (lux, foot-candle) | ||
| - Aperture priority metering | ||
| - EV metering | ||
| - Shutter priority metering | ||
| Measuring Modes Flash: | - Measurement using the optional wireless flash radio triggering system (cumulative and non-cumulative) | |
| - Measurement using the included wireless flash radio triggering system (cumulative and non-cumulative) | ||
| - Without synchro cord (cumulative and non-cumulative) | ||
| - With synchro cord (cumulative and non-cumulative) | ||
| Measuring Range (ISO 100) Ambient Light: | - Incident light: EV -2 to EV 22.9 | |
| - Reflected Light EV 1 to EV 24.4 | ||
| Measuring Range (ISO 100) Flash: | - Incident Light f/0.5 to f/161.2 | |
| - Reflected Light f/2.0 to f/161.2 | ||
| Measuring Range Illuminance: | 0.63 to 190000lux - 0.10 to 180000FC | |
| Measuring Range Brightness: | 0 to 190000 cd/m2 - 0 to 190000 foot lamberts | |
| Repeatability Repeat Accuracy: | (+/-) 0.1 EV or less | |
| Calibration Constant Incident: | Lumisphere C = 340, Lumidisc C = 250 | |
| Calibration Constant Reflected: | K = 12.5 | |
| Display Range and Modes | ||
| Display Range Film Speed: | ISO 3 to 8000 (in 1/3 steps) | |
| Display Range Shutter Speeds Ambient: | 30 min to 1/8000 sec. (in 1, 1/2, 1/3 steps) | |
| Display Range Shutter Speeds Flash: | 30 min to 1/1000 sec. (in 1, 1/2, 1/3 steps) plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400 | |
| Display Range Aperture: | f/0.5 to f/161.0 (in 1, 1/2, 1/3 steps) | |
| Display Range EV: | EV -9.9 to EV 46.6 (in 1/10 steps) | |
| Display Cine Speeds fps: | 2, 3, 4, 6, 8, 12, 16, 18, 24, 25, 30, 32, 36, 40, 48, 50, 60, 64, 72, 96, 120, 128, 150, 200, 240, 256, 300, 360 (shutter angle: 180°) | |
| Display Range Analog Scale Aperture: | f/.5 to f/64 (in 1/3 steps) | |
| Display Range Analog Scale Shutter Speed: | 4 sec. to 1/4000 sec. (in 1/2 steps) | |
| Display Range Shutter Angle: | 1° to 10° (in 1° steps) 15° to 270° (in 5° steps) plus 12°, 17°, 22°, 144°, 172° | |
| Display Range Filter Factor Number Compensation: | 85 n3 n6 n9 A3 A6 A9 | |
| Other | ||
| Exposure Out Of Range: | Eu (underexposure) or Eo (overexposure) | |
| Memory Function: | 9 readings | |
| Average Function: | Up to 9 readings can be averaged | |
| Flash Analyzing Function: | 0 to 100% in 10% increments | |
| Multiple Flash Function: | Infinite number of flash readings (Only one digit is displayed when the cumulated number is ten or more) | |
| Calibration Compensation: | (+/-) 1.0 EV (in 1/10th steps) | |
| Exposure Compensation: | (+/-) 9.9 EV in 1/10 steps) | |
| Custom Functions: | 17 | |
| All Weather Feature: | JIS Standard Water Resistance Class 4, Splash Proof Type | |
| Auto Power Off: | Yes, Selectable in Custom Functions | |
| Battery Power Indicator Display: | Icon with 3 status | |
| Second ISO Film Speed Setting: | ISO 3 to 8000 (in 1/3 steps) | |
| Tripod Socket/Shoe Mount: | 1/4" - 20 thread mount | |
| Battery(Power): | (1) 3V Battery, Model CR123A Lithium | |
| Diopter Adjustment: | -2.5 to 1.0D | |
| Operating Temperature Range: | 14° to 122° F / -10° to 50° C | |
| Storage Temperature Range: | -4° to 140° F / -20° to 60° C | |
| Radio Triggering | ||
| Radio Triggering Radio: | Complex 16/24 bit digitally coded w/ optional RT-32N Module | |
| Radio Triggering Channels: | 1 to 16 channels standard, 17 to 32 "Quad Triggering" | |
| Radio Triggering Range: | Up to 100 feet from transmitter to receiver | |
| Radio Wave Frequency Europe: | - CH1-CH16 433.62MHz | |
| - CH17-CH32 434.22MHz | ||
| Radio Wave Frequency USA Canada: | - CH1-CH16 344.00MHz | |
| - CH17-CH32 346.50 - 354.00MHz | ||
| Dimension and Weight | ||
| Product Dimensions: | 6.70x3.80x1.90 in./17.00x9.70x4.80 cm | |
| Product Weight: | 0.60lbs./0.30kg. | |
| Item Includes | ||
| L-758 Case, CR123A Lithium Battery, Strap, Lens cap, USB cable, Syncro terminal cap, Sticker for multi-key and CS opertaions, Software in CD-ROM | ||
